제품 상세 정보:
|
| 적합한 재료: | GI PPGI | 용량: | 45m/min |
|---|---|---|---|
| 무게: | 2.5T | 롤러 재료: | CR12 |
| 애플리케이션: | 건식 벽체 시스템 | 보증: | 1 년 |
| 강조하다: | 45m/min Drywall Roll Forming Machine,Cr12 Rollers Batten Profile Roll Forming Machine,Drywall System GI Roll Forming Machine |
||

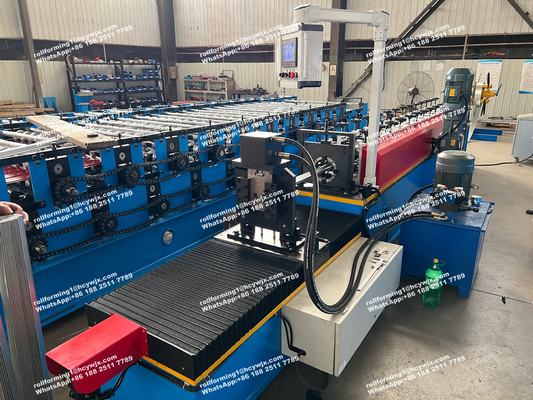

Our Batten Profile GI Roll Forming Machine can produce various steel roof and wall panels, a new building material widely used for factories, warehouses, garages, gymnasiums, exhibition centers, cinemas, and theaters. Key advantages include easy installation, short construction period, aesthetic appeal, light weight, and high strength.
| Main Roll Forming Machine | |
|---|---|
| Roller station | 12 rows |
| Material of roller | Cr12 |
| Material of cutter | Cr12 mould steel with quenched treatment |
| Material Specifications | |
| Material | PPGI, GI, AL |
| Material width | Customized |
| Material thickness | 0.4-0.5mm |
| Performance Parameters | |
| Speed | 45m/min |
| PLC system | DELTA |
| Weight | 2.5T |
With 20 years of experience in manufacturing high-standard roll forming machines for export, we offer:
Rollers: Welded steel frame structure with AC frequency conversion motor reducer drive. Features include chain transmission, roller surface polishing, hard plating, heat treatment, and chrome coating (0.05mm thickness). Roller material: Forging Steel 45# with heat treatment.
Custom-designed rollers based on profile drawings, featuring welded steel frame structure, AC frequency conversion motor reducer drive, and chain transmission for durable performance and high-quality finished products.
Hydraulic-driven system with automatic positioning for precise dimension cutting. Features non-stop cutting capability with Cr12 blades that undergo quenching treatment.
Dimensions: 5600 (L) × 850 (W) × 1510 (H) mm
Weight: 2.5T
